Thrust Ball Bearings1

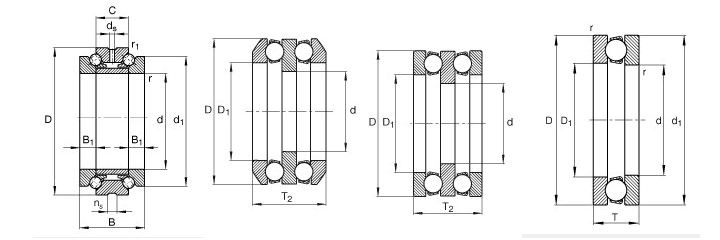

Thrust Ball Bearingsis composed of three parts;
the seat ring, shaft ring and ball and cage. The one coordinate with the axis
is named shaft ring, and the one cooperate with the housing is named seat.
According to the force, it’s divided into one-way thrust ball bearings and thrust
ball bearings. Single trust ball bearings can bear axial load, and thrust ball
bearings can bear bi-directional axial load. Double direction thrust ball
bearings in which the ring is matched with a shaft. Seat mounting surfaces show
spherical bearings with self-aligning capability. It can reduce the mounting error
influence. Thrust ball bearings can bear radial load, and the limit rotational
speed is low.
The Meaning of Suffix
1. Features | |
F | Machined steel or special cast |
iron cage, roller guided | |
J9 | Internal design change to J |
cage | |
M | Machined brass cage, roller |
guided | |
P5 | Dimensional and running |
accuracy to ISO tolerance class | |
5 (approximately ABEC 5) | |
